Trophy Truck Suspension

This suspension system was designed to handle the extreme demands of off-road racing, where strength, travel, and durability are non-negotiable. The assembly features a long-travel control arm, performance coilover shock, and ventilated disc brake setup, all modeled in CAD for precise geometry and realistic visualization.

The design emphasizes ruggedness with reinforced arms and high-performance components, while also capturing the polished look of professional race setups. By combining detailed CAD modeling with an eye for manufacturability, this project showcases the balance between engineering accuracy and presentation quality — a system built for speed, strength, and style.

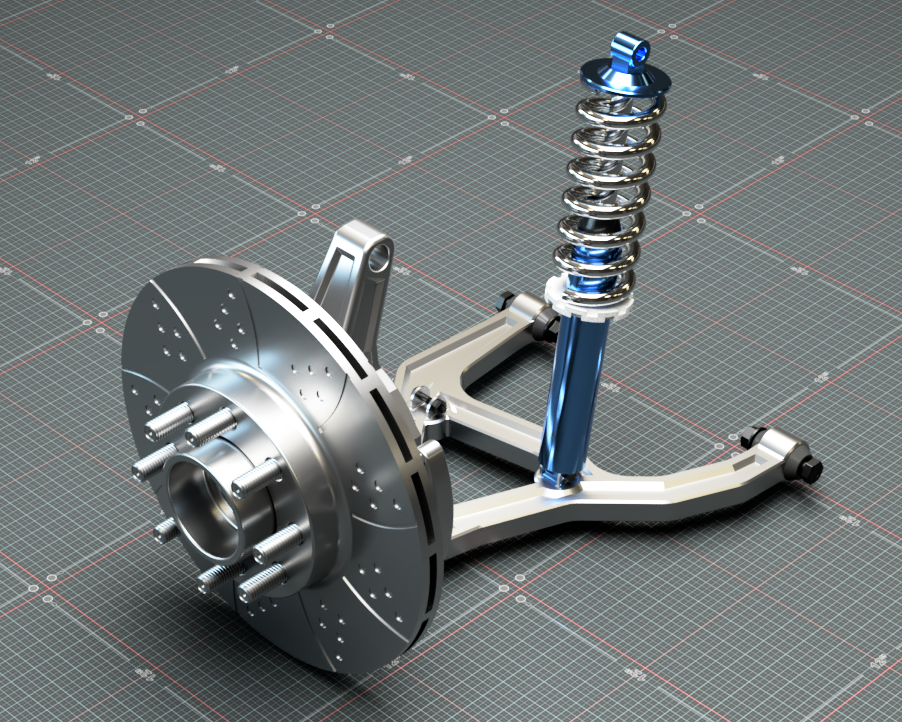

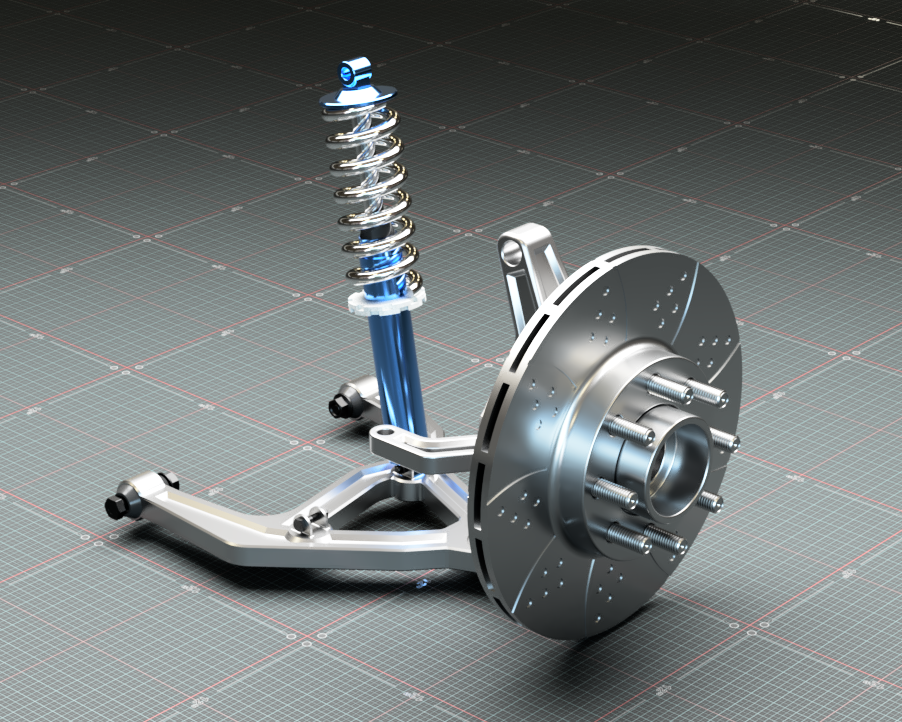

A digital rendering of a car suspension assembly including a coil spring, shock absorber, and brake disc on a gray grid surface.

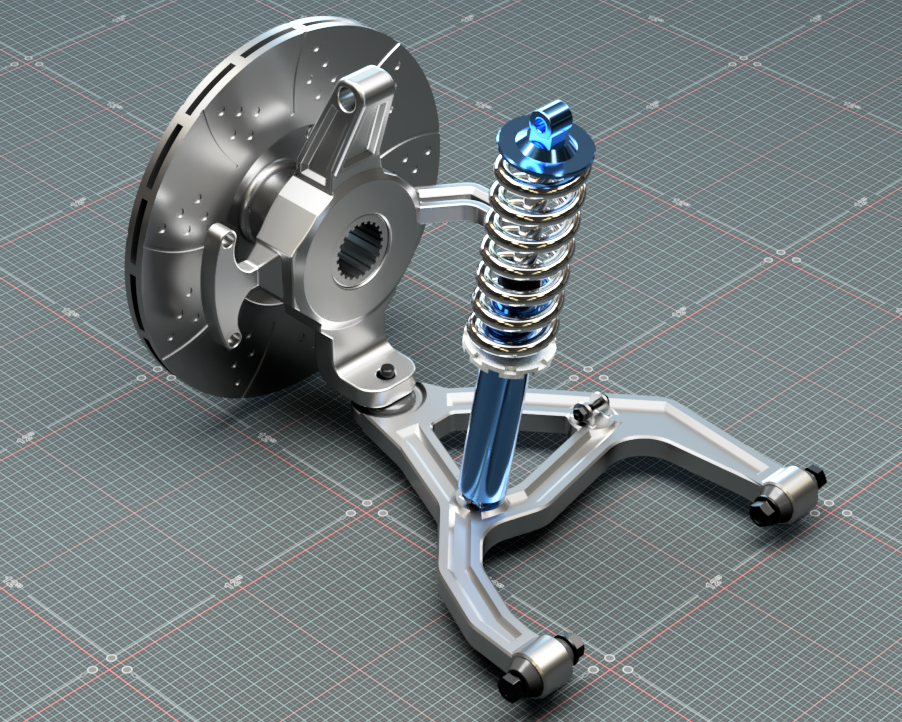

3D rendering of a motorcycle rear suspension and brake assembly on grid background.

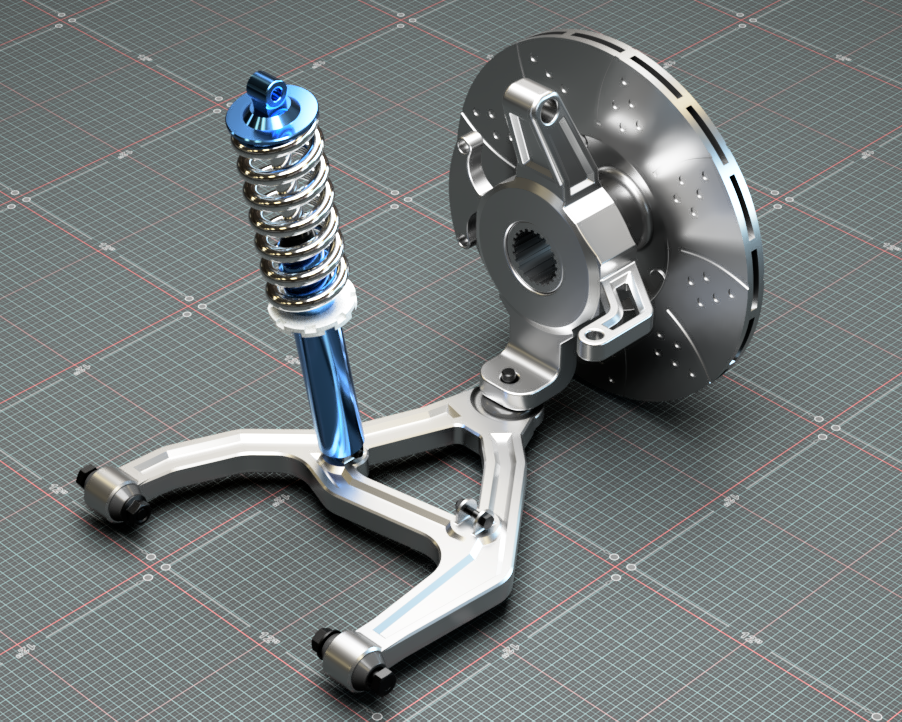

3D rendering of a motorcycle rear suspension system, including a coil shock absorber attached to a swingarm and wheel hub, on a grid background.
A 3D model of a motorcycle front wheel assembly with a disc brake, suspension, and axle on a gridded background.

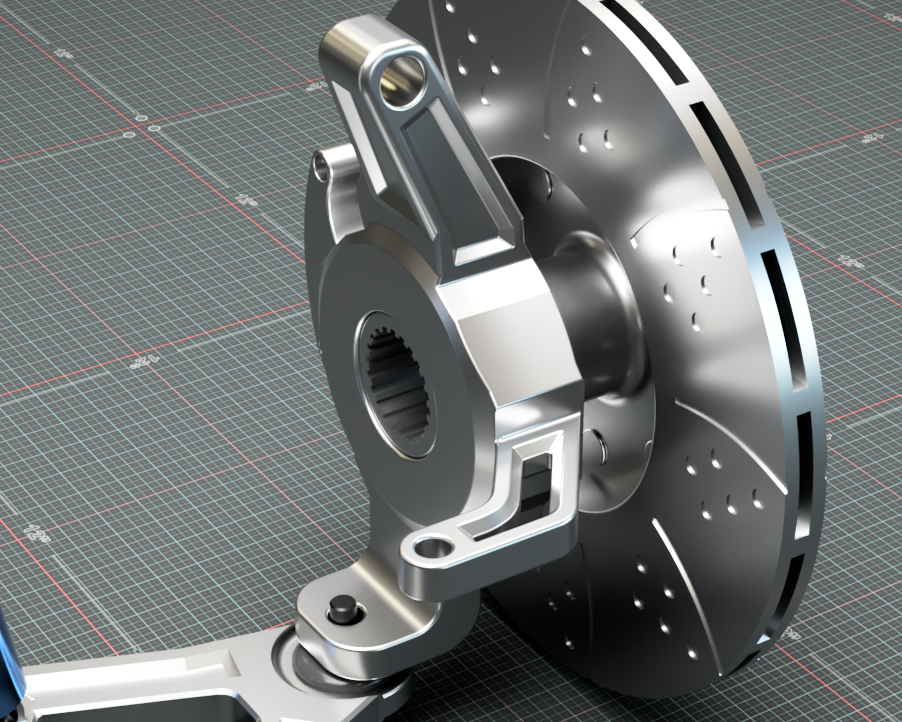

A detailed 3D render of a metallic mechanical part with gears and mounting points on a grid background.

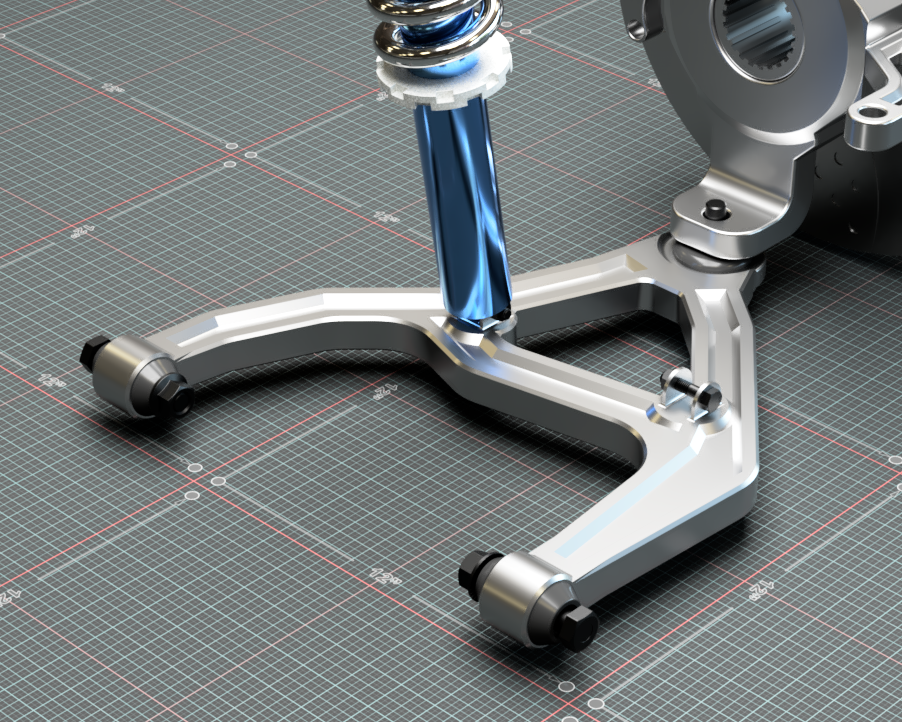

A mechanical device component, possibly part of a drone or robotic arm, with a blue support rod, a metallic base, and multiple screws, on a gridded work surface.

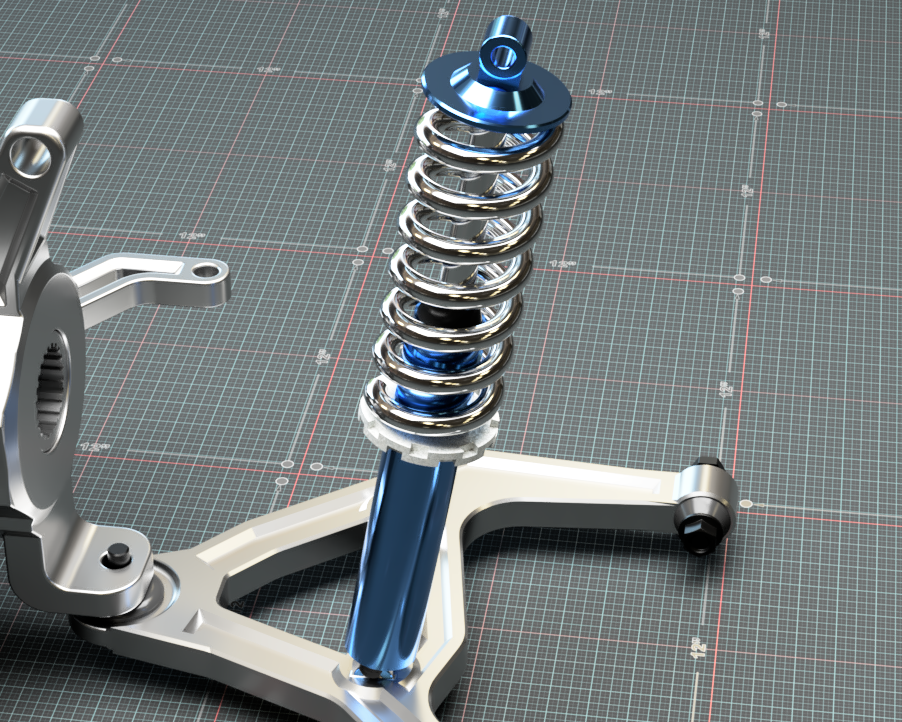

A digital rendering of a motorcycle suspension part with a coil spring in the center, mounted on a metallic frame, on a gridded work surface.

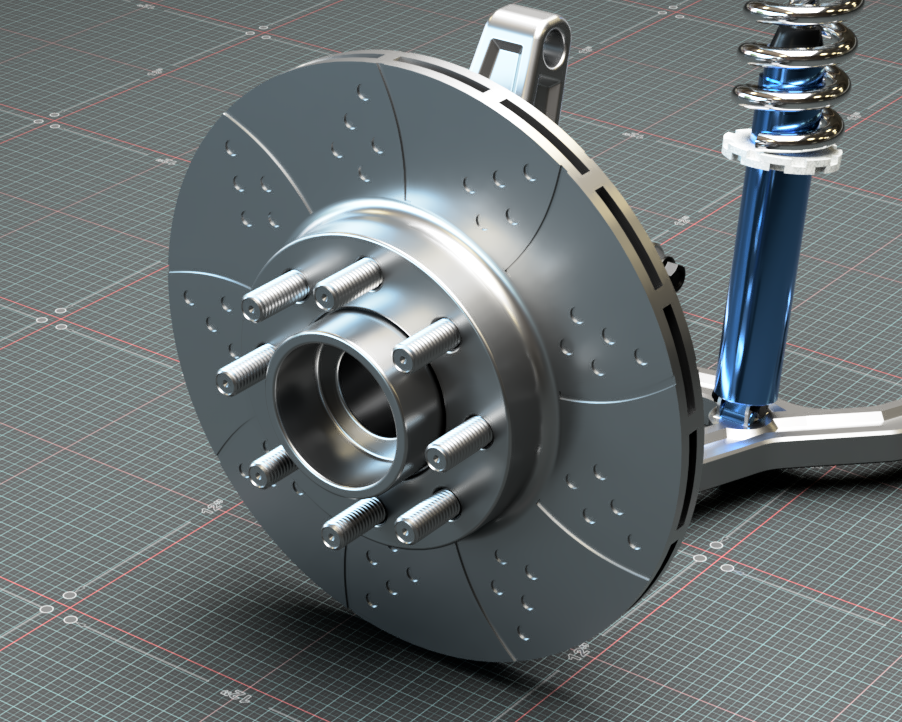

Close-up of a vehicle suspension component, including a disc brake rotor with wheel studs and a coilover shock absorber, on a grid-patterned work surface.

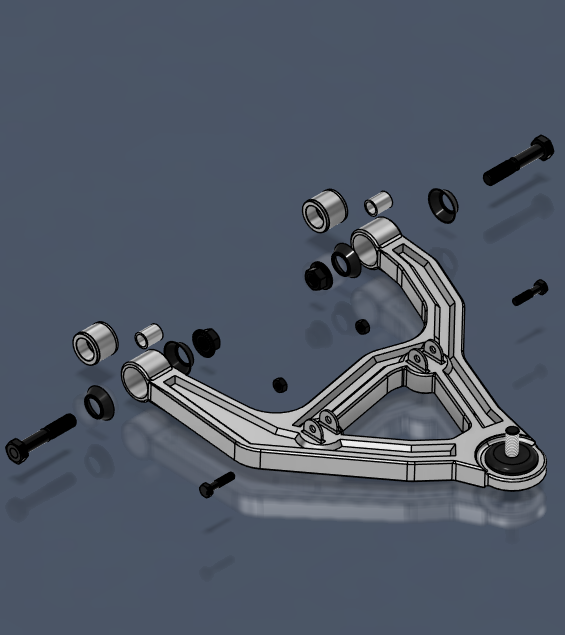

Exploded view of a mechanical part assembly with screws, bearings, and a metal frame.
